DC Switch-Disconnectors can be used to break direct currents (DC) so circuits can be safely isolated for maintenance work.
They are ideal for solar panels used in solar farms, with solar panels becoming an increasingly popular way to generate energy due to their sustainable qualities.
DC Switch-Disconnectors are vital to solar panels.
Solar panels are made up of semiconductor cells which absorb photon energy and generate direct current, powering the panels. The direct current is more difficult to interrupt compared to alternating current (AC), as the direct current has no natural zero points.
The switch uses polyamide glass filled material, having excellent track resistance (CTI) for Insulation to prevent flashover even in the most severe conditions.

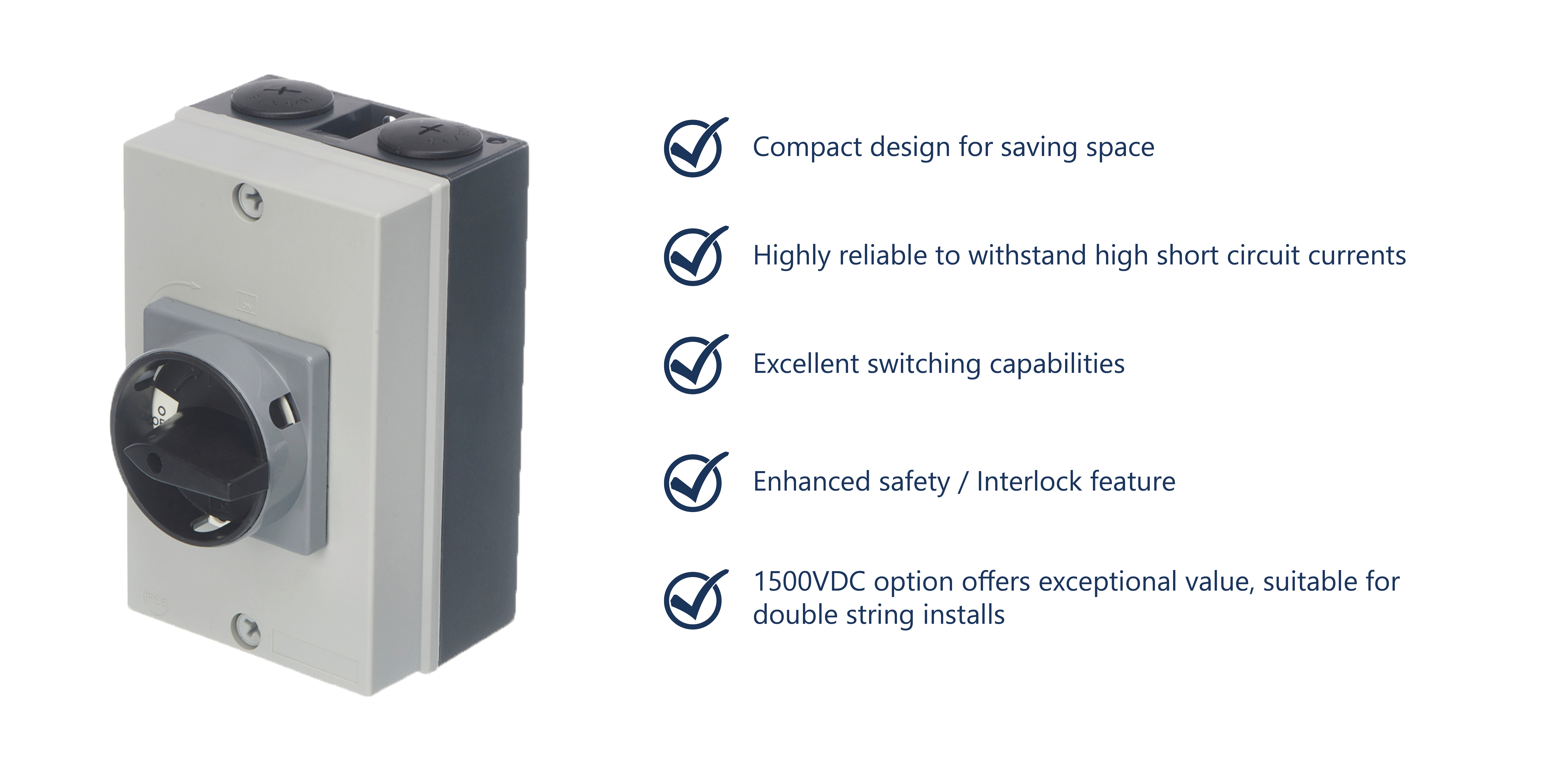

Key Features & Benefits
The Europa DC Switch achieves ultra-rapid switching through a ‘Snap Action’, spring driven, operating mechanism. When the front actuator is rotated energy is accumulated in the mechanism until a point is reached at which the contacts are fired open or closed. This system will operate the switch under load within 5ms thereby reducing the arcing time to a minimum.
To reduce the chances of an arc propagating, the switch employs rotary contact technology. This is designed to make and break the circuit through a revolving double break contact assembly that wipes as it moves. The wiping action has the added advantage of keeping the contact faces clean thereby reducing the resistance and increasing the life of the switch.
DC Switch-Disconnectors provide a safe way to disconnect the currents, allowing you to isolate power for safe maintenance and repair that is vital for prolonging the health of your installations that will reduce downtime and additional costs.
Europa DC Switch-Disconnectors come padlockable in the OFF position for added security. With multiple entry cables, finger protection and wiping contacts, our DC Switch-Disconnectors are easy to install and comply with the latest specification for modern low voltage devices. EN60947-3
Many competitor products are rated at 600/800VDC which means that our LBDC164P (20A @ 1000VDC / 16A @1500VDC) offers exceptional value, especially as they are more suitable for double string installs where the voltage is spread across two strings, saving contractors time and money.
Where can I purchase a Europa DC Switch-Disconnector?
Our DC Switch-Disconnectors are in stock to order from our website with next day delivery available on orders made by 4pm.
Full technical support available for help selecting the correct device – technical@europa-plc.com
